window object as window.roamAlphaAPI and is available from roam/js/roam/cljs code blocks, Roam Depot extensions, roam/render, and the browser console.
.catch(), or try/catch with await.
q, pull, pull_many and their variants time out after 20 seconds, throwing Query and/or pull expression took too long to run.
roamAlphaAPI.util.generateUID.
MM-DD-YYYY format (e.g. 07-16-2026 for July 16th, 2026) — see roamAlphaAPI.util.dateToPageUid.
roamAlphaAPI.apiVersion (string) — the API version, e.g. "1.1.3"; use it for feature detection
roamAlphaAPI.data
roamAlphaAPI.data.q
roamAlphaAPI.q (older top-level name; prefer this namespaced path)
:timeout <ms> clause in the query to override.
% in the :in clause; rules can be recursive.
count, contains?, get, ...), string helpers (str, subs, clojure.string/includes?/starts-with?/ends-with?/blank?), and regex (re-find, re-matches, re-seq, re-pattern). Custom functions can't be resolved from JS query strings.
query (string, required) — the datalog query
...args (optional) — additional inputs, bound to the query's :in clauses (the database itself is passed implicitly)
// all block uids and strings in the graph
window.roamAlphaAPI.data.q(
`[:find ?b ?s
:where
[?e :block/uid ?b]
[?e :block/string ?s]]`);
// => [["y3LFc4rFd", "some block text"], ["09sbCUlgt", "another block"], ...]
// with an :in argument
window.roamAlphaAPI.data.q(
`[:find ?s
:in $ ?uid
:where
[?e :block/uid ?uid]
[?e :block/string ?s]]`,
"abc123xyz");
// => [["the block's text"]]
roamAlphaAPI.data.pull
roamAlphaAPI.pull (older top-level name; prefer this namespaced path)
pattern (string, required) — pull pattern, e.g. "[*]" or "[:block/string {:block/children ...}]"
eid (required) — one of:
:db/id integer, e.g. 24
"[:node/title \"hello world\"]"
[":block/uid", "xyz"]
opts (object, optional) — {timeout: <ms>} overrides the default 20-second timeout
// all attributes of this block
window.roamAlphaAPI.data.pull("[*]", [":block/uid", "xyz"])
// =>
{":block/uid": "xyz",
":block/string": "the block's text",
":block/order": 0,
":block/open": true,
":create/time": 1610031973159,
":edit/time": 1610031974560,
":block/children": [{":db/id": 1234}],
":db/id": 1041}
// this block's string and all of its descendants
window.roamAlphaAPI.data.pull("[:block/string {:block/children ...}]", "[:block/uid \"xyz\"]")
// =>
{":block/string": "the block's text",
":block/children": [{":block/string": "child text"}]}
roamAlphaAPI.data.pull_many
roamAlphaAPI.data.pull, but for many entities at once — faster than pulling in a loop. Synchronous.
pattern (string, required) — same as roamAlphaAPI.data.pull's pattern
eids (array, required) — array of eids, each in any of the forms roamAlphaAPI.data.pull's eid accepts
opts (object, optional) — {timeout: <ms>} overrides the default 20-second timeout
roamAlphaAPI.data.pull_many("[*]",
[[":block/uid", "_fM7pkQEa"], [":block/uid", "kZHsZniZs"]]);
// =>
[{":block/uid": "_fM7pkQEa",
":block/string": "first block",
...},
{":block/uid": "kZHsZniZs",
":block/string": "second block",
...}]
roamAlphaAPI.data.fast.q
roamAlphaAPI.data.q, using an experimental clojurescript→javascript conversion that makes read access roughly 33% faster.
obj[":block/string"]. If you rename a key in the pull ([:block/string :as "string"]), access it as obj.string.
window.roamAlphaAPI.data.fast.q(
`[:find ?b ?s
:where
[?e :block/uid ?b]
[?e :block/string ?s]]`);
// => proxy-wrapped results — index like a regular array, treat as read only
roamAlphaAPI.data.backend.q
roamAlphaAPI.data.q, but runs the query on the backend, off the main thread — useful for expensive queries.
await window.roamAlphaAPI.data.backend.q(
`[:find ?b ?s
:where
[?e :block/uid ?b]
[?e :block/string ?s]]`);
// => [["y3LFc4rFd", "some block text"], ...]
roamAlphaAPI.data.async
q, pull, pull_many, search, fast.q); semanticSearch is async-only.
roamAlphaAPI.data.async.q
roamAlphaAPI.data.q. Same 20-second timeout, overridable with a :timeout clause in the query.
roamAlphaAPI.data.q
await roamAlphaAPI.data.async.q(
`[:find ?s
:in $ ?uid
:where
[?e :block/uid ?uid]
[?e :block/string ?s]]`,
"abc123xyz")
// => [["the block's text"]]
roamAlphaAPI.data.async.pull
roamAlphaAPI.data.pull.
roamAlphaAPI.data.pull
await roamAlphaAPI.data.async.pull("[*]", [":block/uid", "xyz"], {timeout: 60000})
// => {":block/uid": "xyz", ":block/string": "the block's text", ...}
roamAlphaAPI.data.async.pull_many
roamAlphaAPI.data.pull_many.
roamAlphaAPI.data.pull_many
await roamAlphaAPI.data.async.pull_many("[*]",
[[":block/uid", "_fM7pkQEa"], [":block/uid", "kZHsZniZs"]], {timeout: 60000})
// => [{":block/uid": "_fM7pkQEa", ...}, {":block/uid": "kZHsZniZs", ...}]
roamAlphaAPI.data.async.search
roamAlphaAPI.data.search. Uses the search worker when available, transparently falling back to the standard search — same parameters and return shape.
roamAlphaAPI.data.search
await roamAlphaAPI.data.async.search({"search-str": "my query", limit: 50})
// => [{":node/title": "My Query Notes", ":block/uid": "aBc123xYz"}, ...]
roamAlphaAPI.data.async.semanticSearch
roamAlphaAPI.data.semanticSearchEnabled first. While embeddings are still indexing, it returns partial results rather than throwing.
search-str (string, required) — the search query (search-string is accepted as an alias)
k (number, optional, default 25, max 200) — number of results (also the search pool size)
search-blocks (boolean, optional, default true) — include block results
search-pages (boolean, optional, default true) — include page results
hide-code-blocks (boolean, optional, default: the user's hide-code-blocks setting) — exclude code blocks
{type, uid, topUids}:
type — "chunk", "block", or "page"
uid — the hit's primary block uid (the first of topUids)
topUids — the hit's top-level block uids
await roamAlphaAPI.data.async.semanticSearch({"search-str": "my query"})
// =>
[{type: "chunk",
uid: "aBc123xYz",
topUids: ["aBc123xYz", "dEf456uVw"]},
{type: "page",
uid: "gHi789jKl",
topUids: ["gHi789jKl"]},
...]
roamAlphaAPI.data.async.fast.q
roamAlphaAPI.data.fast.q — same proxy-wrapped, read-only result.
roamAlphaAPI.data.q
await roamAlphaAPI.data.async.fast.q(
`[:find ?b :where [?e :block/uid ?b]]`)
// => proxy-wrapped results (read only)

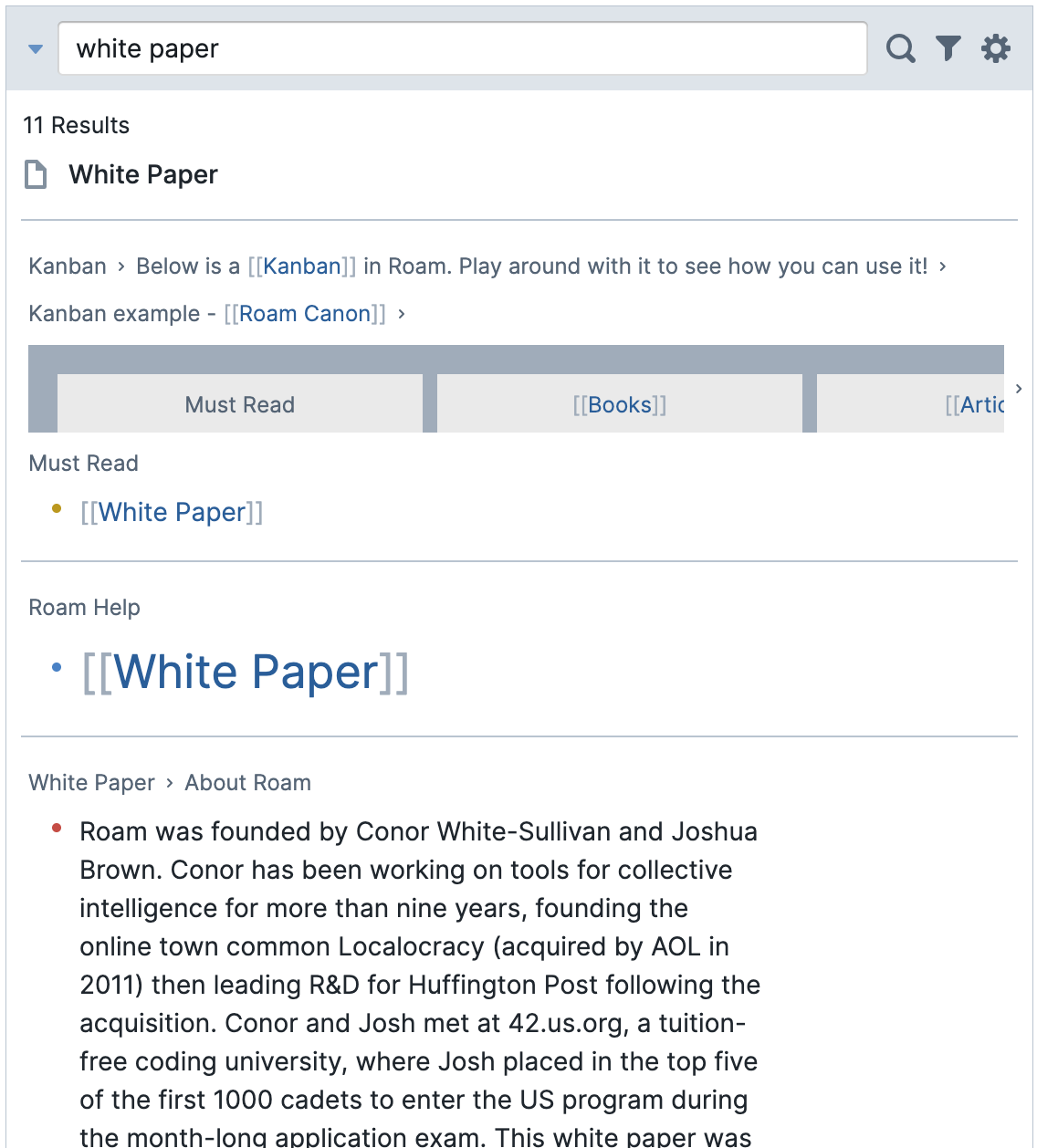

roamAlphaAPI.data.search
search-str (string, required) — the search query (search-string is accepted as an alias)
search-blocks (boolean, optional, default true) — include block results
search-pages (boolean, optional, default true) — include page results
hide-code-blocks (boolean, optional, default: the user's hide-code-blocks setting) — exclude code blocks from results
limit (number, optional, default 300, max 1000) — maximum number of results
pull (string | array, optional, default [:block/string :node/title :block/uid]) — pull pattern for the returned fields
roamAlphaAPI.data.search({"search-str": "my query"})
// =>
[{":node/title": "My Query Notes",
":block/uid": "aBc123xYz"},
{":block/string": "a block mentioning my query",
":block/uid": "dEf456uVw"},
...]
roamAlphaAPI.data.semanticSearchEnabled
true when embeddings are enabled and a user is signed in. Synchronous.
roamAlphaAPI.data.async.semanticSearch, which throws when semantic search isn't available.
roamAlphaAPI.data.semanticSearchEnabled()
// => true
roamAlphaAPI.data.roamQuery
{{[[query]]: ...}} blocks — and return matching blocks/pages.
uid of an existing query block to use its stored settings
query string directly with optional display settings
roamAlphaAPI, the parameters are camelCase.
uid (string) — block uid of an existing query block; uses that block's stored display settings
query (string, required if no uid) — a query string, e.g. "{and: [[project]] [[active]]}"
groupByPage (boolean, optional, default true) — group results by page (query mode only)
nestUnderParent (boolean, optional, default false) — collapse child matches under their parent (query mode only)
sort (string, optional; query mode only)
groupByPage: "page-most-recent" (default) | "page-title" | "page-created-date" | "daily-note"
sortOrder (string, optional, default "desc") — "asc" or "desc" (query mode only)
offset (integer, optional, default 0) — number of results to skip
limit (integer | null, optional, default 20) — maximum results; pass null for all
pull (string, optional, default "[:block/string :node/title :block/uid]") — pull pattern for the results
{total: <number>, results: <array of pulled results>}
await window.roamAlphaAPI.data.roamQuery({query: "{and: [[project]] [[active]]}"})
// => {total: 42, results: [{":block/string": "...", ":block/uid": "aBc123xYz"}, ...]}
// run an existing query block with its stored settings
await window.roamAlphaAPI.data.roamQuery({uid: "abc123def"})
// => {total: 7, results: [...]}
roamAlphaAPI.data.addPullWatch
pattern (string, required) — the pull pattern to watch
entity-id (string, required) — the entity to watch, e.g. '[:block/uid "02-21-2021"]'
callback (function, required) — called with (before, after) pull results
null once the watch is registered
window.roamAlphaAPI.data.addPullWatch(
"[:block/children :block/string {:block/children ...}]",
'[:block/uid "02-21-2021"]',
(before, after) => { console.log("before", before, "after", after); })
// resolves to null; the callback later fires with the before/after pull results
roamAlphaAPI.data.removePullWatch
callback, removes every watch for that pattern + entity; with no arguments at all, removes all pull watches. Takes positional arguments.
pattern (string, optional) — the same value passed to roamAlphaAPI.data.addPullWatch
entity-id (string, optional) — the same value passed to roamAlphaAPI.data.addPullWatch
callback (function, optional) — the callback to remove
null (the two-argument form resolves to true)
window.roamAlphaAPI.data.removePullWatch(
"[:block/children :block/string {:block/children ...}]",
'[:block/uid "02-21-2021"]',
myCallbackFn)
// resolves to null
roamAlphaAPI.data.undo
cmd-z).
undefined
roamAlphaAPI.data.redo
cmd-shift-z).
undefined
roamAlphaAPI.data.block
roamAlphaAPI.data.block.create
roamAlphaAPI.createBlock (older top-level name; prefer this namespaced path)
location (object, required)
parent-uid (string, required) — uid of the parent block or page
order (number | "first" | "last", required) — position among the parent's children, 0-indexed
block (object, required)
string (string, required) — text content of the block
uid (string, optional) — autogenerated if omitted; pass one (see roamAlphaAPI.util.generateUID) only when you need to know it ahead of time
open (boolean, optional, default true) — collapse state
heading (integer, optional) — heading styling, 0 (none) to 3
text-align (string, optional) — "left" | "center" | "right" | "justify"
children-view-type (string, optional) — view type of the block's children: "bullet" | "numbered" | "document"
block-view-type (string, optional) — view type of the block itself: "outline" | "horizontal-outline" | "popout" | "tabs" | "comment" | "side" | "vertical"
user-uid (string, optional) — attribute this write to the given user instead of the acting user; officially supported only from roamAlphaAPI.ai.addTool #experimental handlers
undefined; rejects if parent-uid doesn't exist or uid is already taken
await window.roamAlphaAPI.data.block.create(
{"location": {"parent-uid": "01-21-2021", "order": 0},
"block": {"string": "test"}})
// => undefined
roamAlphaAPI.data.block.update
roamAlphaAPI.updateBlock (older top-level name; prefer this namespaced path)
block (object, required)
uid (string, required) — block to update
string (string, optional) — new text content
open (boolean, optional) — collapse state
heading (integer, optional) — heading styling, 0 (none) to 3
text-align (string, optional) — "left" | "center" | "right" | "justify"
children-view-type (string, optional) — view type of the block's children: "bullet" | "numbered" | "document"
block-view-type (string, optional) — view type of the block itself: "outline" | "horizontal-outline" | "popout" | "tabs" | "comment" | "side" | "vertical"
user-uid (string, optional) — attribute this write to the given user instead of the acting user; officially supported only from roamAlphaAPI.ai.addTool #experimental handlers
undefined
await window.roamAlphaAPI.data.block.update(
{"block": {"uid": "f8cXfDIRn", "string": "Love"}})
// => undefined
roamAlphaAPI.data.block.move
roamAlphaAPI.moveBlock (older top-level name; prefer this namespaced path)
block (object, required)
uid (string, required) — block to move
user-uid (string, optional) — attribute this write to the given user instead of the acting user; officially supported only from roamAlphaAPI.ai.addTool #experimental handlers
location (object, required)
parent-uid (string, required) — uid of the new parent block or page
order (number | "first" | "last", required) — position among the new parent's children
undefined; rejects if the block or parent-uid doesn't exist
await window.roamAlphaAPI.data.block.move(
{"location": {"parent-uid": "01-21-2021", "order": 0},
"block": {"uid": "f8cXfDIRn"}})
// => undefined
roamAlphaAPI.data.block.delete
roamAlphaAPI.deleteBlock (older top-level name; prefer this namespaced path)
block (object, required)
uid (string, required) — block to delete
user-uid (string, optional) — attribute this write to the given user instead of the acting user; officially supported only from roamAlphaAPI.ai.addTool #experimental handlers
{deleted: true} or {deleted: false, reason: "not-found"}
reason value, we might have different reasons in the future
.catch() for errors (or the just use try catch blocks in case you are using await)
await window.roamAlphaAPI.data.block.delete(
{"block": {"uid": "f8cXfDIRn"}})
// => {deleted: true}
roamAlphaAPI.data.block.reorderBlocks
parent-uid — no other blocks, no duplicates — in the desired order.
location (object, required)
parent-uid (string, required) — uid of the new parent block or page
order (number | "first" | "last", required) — position among the new parent's children
blocks (array of strings, required) — every child uid of parent-uid, listed in the new order
user-uid (string, optional) — attribute this write to the given user instead of the acting user; officially supported only from roamAlphaAPI.ai.addTool #experimental handlers
undefined
await roamAlphaAPI.data.block.reorderBlocks(
{location: {"parent-uid": "ihu5eUofL"},
blocks: ["QCE0cNNNL", "IATKcVmWE", "nC22orMO4"]})
// => undefined
roamAlphaAPI.data.block.fromMarkdown
# Hello followed by a two-item list parses to one top-level block with the list as its children. In outliner-shaped input (every non-blank line a - bullet or an indented continuation), headings stay flat labels — the same content written as - # Hello plus bullet items parses to flat siblings. (File import and paste always nest.)
location (object, required)
parent-uid (string, required) — uid of the new parent block or page
order (number | "first" | "last", required) — position among the new parent's children
markdown-string (string, required) — the markdown content to parse into blocks
{uids: [...]} — the uids of the top-level blocks created
await window.roamAlphaAPI.data.block.fromMarkdown({
location: {"parent-uid": "4VuwigG1O", "order": "first"},
"markdown-string": "# Hello\n\n- Item 1\n- Item 2\n - Nested"})
// => {uids: ["aBc123xYz"]}
// (one top-level block: the heading nests the list under it)
roamAlphaAPI.data.block.addComment
block-uid (string, required) — block to comment on
reply-string (string) — plain text for a single reply block (use this or reply-markdown, not both)
reply-markdown (string) — markdown parsed into multiple sibling reply blocks
reply-uid (string, optional) — uid for the created reply block; autogenerated if omitted
open-comment (boolean, optional, default false) — open the block's comments in the sidebar after adding the reply
{uids: [...], parentUid: "..."} — uids of the created reply block(s) and the uid of the comments block they live under
// single reply
await window.roamAlphaAPI.data.block.addComment(
{"block-uid": "abc123", "reply-string": "This is a comment"})
// => {uids: ["aBc123xYz"], parentUid: "dEf456uVw"}
// markdown reply (parsed into siblings)
await window.roamAlphaAPI.data.block.addComment(
{"block-uid": "abc123", "reply-markdown": "First block\n- Nested child"})
// => {uids: ["gHi789jKl"], parentUid: "dEf456uVw"}
roamAlphaAPI.data.page
roamAlphaAPI.data.page.create
January 21st, 2021) creates that daily note if it doesn't exist yet.
roamAlphaAPI.createPage (older top-level name; prefer this namespaced path)
page (object, required)
title (string, required)
uid (string, optional) — autogenerated if omitted; in normal operation you shouldn't pass one
children-view-type (string, optional) — "bullet" | "numbered" | "document"
user-uid (string, optional) — attribute this write to the given user instead of the acting user; officially supported only from roamAlphaAPI.ai.addTool #experimental handlers
undefined; rejects if a page with the given title or uid already exists
await window.roamAlphaAPI.data.page.create({page: {title: "My New Page"}})
// => undefined
roamAlphaAPI.data.page.fromMarkdown
# Hello followed by a two-item list parses to one top-level block with the list as its children. In outliner-shaped input (every non-blank line a - bullet or an indented continuation), headings stay flat labels — the same content written as - # Hello plus bullet items parses to flat siblings. (File import and paste always nest.)
page (object, required)
title (string, required)
uid (string, optional) — autogenerated if omitted; in normal operation you shouldn't pass one
children-view-type (string, optional) — "bullet" | "numbered" | "document"
markdown-string (string, required) — the markdown content to parse into blocks
{uid: <page-uid>}; rejects if a page with the given title already exists
await window.roamAlphaAPI.data.page.fromMarkdown({
page: {title: "My New Page"},
"markdown-string": "# Heading\n\n- Item 1\n- Item 2"})
// => {uid: "mK9pQ2rTw"}
roamAlphaAPI.data.page.update
roamAlphaAPI.updatePage (older top-level name; prefer this namespaced path)
page (object, required)
uid (string, required)
title (string, optional) — new title
children-view-type (string, optional) — "bullet" | "numbered" | "document"
user-uid (string, optional) — attribute this write to the given user instead of the acting user; officially supported only from roamAlphaAPI.ai.addTool #experimental handlers
undefined; rejects when renaming to a title that already exists in the graph
await window.roamAlphaAPI.data.page.update(
{page: {uid: "RZVuh3aZN", title: "New Title"}})
// => undefined
roamAlphaAPI.data.page.delete
roamAlphaAPI.deletePage (older top-level name; prefer this namespaced path)
page (object, required)
uid (string, required)
user-uid (string, optional) — attribute this write to the given user instead of the acting user; officially supported only from roamAlphaAPI.ai.addTool #experimental handlers
{deleted: true} or {deleted: false, reason: "not-found"}
reason value, we might have different reasons in the future
.catch() for errors (or the just use try catch blocks in case you are using await)
await window.roamAlphaAPI.data.page.delete({page: {uid: "RZVuh3aZN"}})
// => {deleted: true}
roamAlphaAPI.data.page.addShortcut
uid (string, required) — page uid
index (number, optional) — position in the shortcut list; defaults to the end (capped to the valid range)
undefined
await roamAlphaAPI.data.page.addShortcut("12-11-2025");
await roamAlphaAPI.data.page.addShortcut("12-11-2025", 4);
// each => undefined
roamAlphaAPI.data.page.removeShortcut
uid (string, required) — page uid
undefined
await roamAlphaAPI.data.page.removeShortcut("12-11-2025")
// => undefined
roamAlphaAPI.data.user
roamAlphaAPI.data.user.upsert
user-uid (string, required)
display-name (string, optional)
photo-url (string, optional) — url of the user's photo
undefined
await window.roamAlphaAPI.data.user.upsert(
{"user-uid": "BBG4fFwolaVlT5FZQdzAI7P40aB3",
"display-name": "Josh"})
// => undefined
roamAlphaAPI.data.ai
getPage, getBlock, getBacklinks, roamQuery, search, semanticSearch, suggestLinks, searchTemplates, getGraphGuidelines, getComments). Not a stable public surface — breaking changes land without notice; don't build on it. #experimental
roamAlphaAPI.ui
roamAlphaAPI.ui.getFocusedBlock
null if none. Synchronous.
roamAlphaAPI.ui.commandPalette callback, after the block has lost focus in the DOM.
{"block-uid": "YnatnbZzF",
"window-id": "BBG4fFwolaVlT5FZQdzAI7P40aB3-body-outline-04-15-2021"}
window.roamAlphaAPI.ui.getFocusedBlock()
// =>
{"block-uid": "YnatnbZzF",
"window-id": "BBG4fFwolaVlT5FZQdzAI7P40aB3-body-outline-04-15-2021"}
roamAlphaAPI.ui.setBlockFocusAndSelection
location (object, optional) — same shape as roamAlphaAPI.ui.getFocusedBlock's return value
block-uid (string, required)
window-id (string, required) — either:
roamAlphaAPI.ui.rightSidebar.getWindows
selection (object, optional)
start (integer, required) — 0-indexed
end (integer, optional)
start–end becomes a selection; otherwise the cursor is placed before the start-th character.
end is less than start, both are treated as the value of end.
undefined
window.roamAlphaAPI.ui.setBlockFocusAndSelection(
{location: window.roamAlphaAPI.ui.getFocusedBlock(),
selection: {start: 3, end: 7}})
// resolves to undefined
roamAlphaAPI.ui.mainWindow
roamAlphaAPI.ui.mainWindow.openBlock
block (object, required)
uid (string, required)
undefined
await window.roamAlphaAPI.ui.mainWindow.openBlock({block: {uid: "v9eHoHwqS"}})
// => undefined
roamAlphaAPI.ui.mainWindow.openPage
page (object, required) — one of:
title (string)
uid (string)
undefined
await window.roamAlphaAPI.ui.mainWindow.openPage({page: {title: "test-new"}})
await window.roamAlphaAPI.ui.mainWindow.openPage({page: {uid: "RZVuh3aZN"}})
// each => undefined
roamAlphaAPI.ui.mainWindow.openDailyNotes
undefined
roamAlphaAPI.ui.mainWindow.focusFirstBlock
undefined
roamAlphaAPI.ui.mainWindow.getOpenPageOrBlockUid
null when no page/block is open (e.g. the daily notes log)
await window.roamAlphaAPI.ui.mainWindow.getOpenPageOrBlockUid()
// => "Vfht187T1" (or null on the daily notes log)
roamAlphaAPI.ui.mainWindow.getOpenView
// page
{type: "outline",
uid: "Vfht187T1",
title: "My Page Title"}
// zoomed into a block
{type: "outline",
uid: "abc123xyz",
"block-string": "Some block content"}
// daily notes
{type: "log",
uids: ["07-17-2026", "07-16-2026"]}
// graph view
{type: "graph"}
// diagram
{type: "diagram",
uid: "diagram-uid"}
// PDF viewer
{type: "pdf",
uid: "pdf-block-uid",
url: "https://firebasestorage.googleapis.com/..."}
// all pages search
{type: "search"}
// custom component, see registerComponent
{type: "custom",
id: "component-id",
args: []}
roamAlphaAPI.ui.mainWindow.registerComponent
id (string, required) — identifier for the component
component (React component, required)
const MyView = () => React.createElement("h1", null, "Hello from my view");
window.roamAlphaAPI.ui.mainWindow.registerComponent("my-view", MyView)
// (return value is not meaningful)
roamAlphaAPI.ui.mainWindow.unregisterComponent
id (string, required)
window.roamAlphaAPI.ui.mainWindow.unregisterComponent("my-view")
// (return value is not meaningful)
roamAlphaAPI.ui.mainWindow.openComponent
roamAlphaAPI.ui.mainWindow.getOpenView as args.
id (string, required)
...args (optional) — arguments for the component
window.roamAlphaAPI.ui.mainWindow.openComponent("my-view", "arg1", 42)
// getOpenView() now reports
// {type: "custom", id: "my-view", args: ["arg1", 42]}
roamAlphaAPI.ui.mainWindow.closeComponent
id (string, required)
window.roamAlphaAPI.ui.mainWindow.closeComponent("my-view")
// (return value is not meaningful)
roamAlphaAPI.ui.leftSidebar
roamAlphaAPI.ui.leftSidebar.open
null
roamAlphaAPI.ui.leftSidebar.close
null
roamAlphaAPI.ui.rightSidebar
type plus target uid — there is no window-id argument. The window-id string from roamAlphaAPI.ui.rightSidebar.getWindows is only used with roamAlphaAPI.ui.setBlockFocusAndSelection.
block-uid with type "block" opens/matches an outline window for that page, and a mentions window becomes block- or page-mentions depending on the uid.
roamAlphaAPI.ui.rightSidebar.open
undefined
roamAlphaAPI.ui.rightSidebar.close
undefined
roamAlphaAPI.ui.rightSidebar.getWindows
type — "block" | "outline" | "mentions" | "graph" | "search-query"
window-id (string)
order (number), collapsed?, pinned?, pinned-to-top? (booleans)
type:
block-uid (plus block-string)
page-uid (plus title)
mentions-uid
page-uid plus title instead
search-query-str
window.roamAlphaAPI.ui.rightSidebar.getWindows()
// =>
[{type: "outline",
"window-id": "sidebar-outline-mK9pQ2rTw",
"page-uid": "mK9pQ2rTw",
title: "My Page",
order: 0,
"collapsed?": false,
"pinned?": false,
"pinned-to-top?": false},
{type: "block",
"window-id": "sidebar-block-aBc123xYz",
"block-uid": "aBc123xYz",
"block-string": "some block text",
order: 1,
"collapsed?": true,
"pinned?": false,
"pinned-to-top?": false}]
roamAlphaAPI.ui.rightSidebar.addWindow
window (object, required)
type (string, required) — "block" | "outline" | "mentions" | "graph" | "search-query"
block-uid (string, required) — uid of the block or page the window shows; "search-query" windows take search-query-str instead
order (number, optional) — position in the sidebar; if not specified, the new window is added at the top
undefined
// a block
window.roamAlphaAPI.ui.rightSidebar
.addWindow({window: {type: "block", "block-uid": "1fP8LY5ED"}})
// a page outline
window.roamAlphaAPI.ui.rightSidebar
.addWindow({window: {type: "outline", "block-uid": "cArVJL_vg"}})
// linked references of a block or page
window.roamAlphaAPI.ui.rightSidebar
.addWindow({window: {type: "mentions", "block-uid": "vutDCPD8G"}})
// a graph view of a page
window.roamAlphaAPI.ui.rightSidebar
.addWindow({window: {type: "graph", "block-uid": "cArVJL_vg"}})
// a window that searches for "API"
window.roamAlphaAPI.ui.rightSidebar
.addWindow({window: {type: "search-query", "search-query-str": "API"}})
// each resolves to undefined
roamAlphaAPI.ui.rightSidebar.removeWindow
window (object, required)
type (string, required) — "block" | "outline" | "mentions" | "graph" | "search-query"
block-uid (string, required) — uid of the block or page the window shows; "search-query" windows take search-query-str instead
undefined
window.roamAlphaAPI.ui.rightSidebar
.removeWindow({window: {type: "block", "block-uid": "1fP8LY5ED"}})
// resolves to undefined
roamAlphaAPI.ui.rightSidebar.expandWindow
window (object, required)
type (string, required) — "block" | "outline" | "mentions" | "graph" | "search-query"
block-uid (string, required) — uid of the block or page the window shows; "search-query" windows take search-query-str instead
undefined
window.roamAlphaAPI.ui.rightSidebar
.expandWindow({window: {type: "outline", "block-uid": "cArVJL_vg"}})
// resolves to undefined
roamAlphaAPI.ui.rightSidebar.collapseWindow
window (object, required)
type (string, required) — "block" | "outline" | "mentions" | "graph" | "search-query"
block-uid (string, required) — uid of the block or page the window shows; "search-query" windows take search-query-str instead
undefined
window.roamAlphaAPI.ui.rightSidebar
.collapseWindow({window: {type: "outline", "block-uid": "cArVJL_vg"}})
// resolves to undefined
roamAlphaAPI.ui.rightSidebar.pinWindow
window (object, required)
type (string, required) — "block" | "outline" | "mentions" | "graph" | "search-query"
block-uid (string, required) — uid of the block or page the window shows; "search-query" windows take search-query-str instead
pin-to-top? (boolean, optional) — true pins the window to the top: the pin turns red, new windows are added below it, and a previously top-pinned window is unpinned. When omitted, the pin-to-top state is left unchanged.
undefined
window.roamAlphaAPI.ui.rightSidebar
.pinWindow({window: {type: "block", "block-uid": "1fP8LY5ED"}})
// pin to the top of the sidebar
window.roamAlphaAPI.ui.rightSidebar
.pinWindow({window: {type: "block", "block-uid": "1fP8LY5ED"},
"pin-to-top?": true})
// each resolves to undefined
roamAlphaAPI.ui.rightSidebar.unpinWindow
window (object, required)
type (string, required) — "block" | "outline" | "mentions" | "graph" | "search-query"
block-uid (string, required) — uid of the block or page the window shows; "search-query" windows take search-query-str instead
undefined
window.roamAlphaAPI.ui.rightSidebar
.unpinWindow({window: {type: "block", "block-uid": "1fP8LY5ED"}})
// resolves to undefined
roamAlphaAPI.ui.rightSidebar.setWindowOrder
window (object, required)
type (string, required) — "block" | "outline" | "mentions" | "graph" | "search-query"
block-uid (string, required) — uid of the block or page the window shows; "search-query" windows take search-query-str instead
order (number, required) — new position, 0 to n
undefined
window.roamAlphaAPI.ui.rightSidebar
.setWindowOrder({window: {type: "block", "block-uid": "1fP8LY5ED", order: 0}})
// resolves to undefined
roamAlphaAPI.ui.filters
{"includes": [...page titles], "removes": [...page titles]}.
roamAlphaAPI.ui.filters.addGlobalFilter
title (string, required) — page title
type (string, required) — "includes" | "removes"
undefined
window.roamAlphaAPI.ui.filters
.addGlobalFilter({title: "TODO", type: "removes"})
// resolves to undefined
roamAlphaAPI.ui.filters.removeGlobalFilter
title (string, required) — page title
type (string, required) — "includes" | "removes"
undefined
window.roamAlphaAPI.ui.filters
.removeGlobalFilter({title: "TODO", type: "removes"})
// resolves to undefined
roamAlphaAPI.ui.filters.getGlobalFilters
{"includes": [...], "removes": [...]} — lists of page titles
window.roamAlphaAPI.ui.filters.getGlobalFilters()
// => {"includes": [], "removes": ["TODO"]}
roamAlphaAPI.ui.filters.getPageFilters
page (object, required) — one of:
title (string)
uid (string)
{"includes": [...], "removes": [...]} — lists of page titles
window.roamAlphaAPI.ui.filters.getPageFilters({page: {title: "test"}})
// => {"includes": ["March 11th, 2022"], "removes": []}
roamAlphaAPI.ui.filters.setPageFilters
{} as filters to clear them.
page (object, required) — one of:
title (string)
uid (string)
filters (object, required)
includes (array of page titles, optional)
removes (array of page titles, optional)
undefined
window.roamAlphaAPI.ui.filters.setPageFilters(
{page: {title: "test"},
filters: {includes: ["March 11th, 2022"]}})
// clear the filters
window.roamAlphaAPI.ui.filters.setPageFilters(
{page: {title: "test"}, filters: {}})
// each resolves to undefined
roamAlphaAPI.ui.filters.getPageLinkedRefsFilters
page (object, required) — one of:
title (string)
uid (string)
{"includes": [...], "removes": [...]} — lists of page titles
window.roamAlphaAPI.ui.filters.getPageLinkedRefsFilters({page: {title: "test"}})
// => {"includes": ["Author"], "removes": []}
roamAlphaAPI.ui.filters.setPageLinkedRefsFilters
{} as filters to clear them.
page (object, required) — one of:
title (string)
uid (string)
filters (object, required)
includes (array of page titles, optional)
removes (array of page titles, optional)
undefined
window.roamAlphaAPI.ui.filters.setPageLinkedRefsFilters(
{page: {title: "test"},
filters: {includes: ["Author"]}})
// resolves to undefined
roamAlphaAPI.ui.filters.getSidebarWindowFilters
window (object, required)
type (string, required) — "block" | "outline" | "mentions" | "graph" ("search-query" windows don't support filters)
block-uid (string, required) — uid of the block or page the window shows
{"includes": [...], "removes": [...]} — lists of page titles
window.roamAlphaAPI.ui.filters.getSidebarWindowFilters(
{window: {"block-uid": "WYlc2nIO9", type: "outline"}})
// => {"includes": ["Author"], "removes": []}
roamAlphaAPI.ui.filters.setSidebarWindowFilters
{} as filters to clear them.
window (object, required)
type (string, required) — "block" | "outline" | "mentions" | "graph" ("search-query" windows don't support filters)
block-uid (string, required) — uid of the block or page the window shows
filters (object, required)
includes (array of page titles, optional)
removes (array of page titles, optional)
undefined
window.roamAlphaAPI.ui.filters.setSidebarWindowFilters(
{window: {"block-uid": "WYlc2nIO9", type: "outline"},
filters: {includes: ["Author"]}})
// resolves to undefined
roamAlphaAPI.ui.commandPalette
roamAlphaAPI.ui.commandPalette.addCommand
cmd-p).
label updates the existing command instead of adding a second one.
label (string, required) — text shown in the Command Palette
callback (function, required) — called with no arguments when the user runs the command
disable-hotkey (boolean, optional) — don't allow a hotkey for this command
default-hotkey (string | array of strings, optional) — most commands should NOT set this
disable-hotkey is set), no hotkey is preassigned but the user can add one in Settings → Hotkeys.
["ctrl-c", "ctrl-m"] (like the native "go to next block").
cmd on macOS, ctrl elsewhere):
null
window.roamAlphaAPI.ui.commandPalette.addCommand(
{label: "hi",
callback: () => console.log("Hello World!")})
// with a default hotkey — in most cases you do NOT want this;
// the user can customize it in Settings → Hotkeys
window.roamAlphaAPI.ui.commandPalette.addCommand(
{label: "example1",
callback: () => console.log("Hello World!"),
"default-hotkey": "ctrl-cmd-l"})
// each resolves to null
roamAlphaAPI.ui.commandPalette.removeCommand
label from the Command Palette.
label (string, required) — the label passed to roamAlphaAPI.ui.commandPalette.addCommand
null
window.roamAlphaAPI.ui.commandPalette.removeCommand({label: "hi"})
// resolves to null
roamAlphaAPI.ui.slashCommand
roamAlphaAPI.ui.slashCommand.addCommand
/ slash menu. Calling again with the same label updates the existing command.
label (string, required) — text shown in the slash menu
display-conditional (function, optional) — called with the context object (without indexes); return true to show the command
callback (function, required)
{"block-uid": "YnatnbZzF",
"window-id": "BBG4fFwolaVlT5FZQdzAI7P40aB3-body-outline-04-15-2021",
indexes: [1, 10]}
null to handle insertion yourself (the typed search string is not removed).
null
window.roamAlphaAPI.ui.slashCommand.addCommand({
label: "Quick Test",
callback: (context) => "It works! 🎉"
});
// => null
roamAlphaAPI.ui.slashCommand.removeCommand
label from the slash menu.
label (string, required) — the label passed to roamAlphaAPI.ui.slashCommand.addCommand
null
window.roamAlphaAPI.ui.slashCommand.removeCommand({label: "Quick Test"})
// => null
roamAlphaAPI.ui.blockContextMenu
roamAlphaAPI.ui.blockContextMenu.addCommand
label updates the existing command instead of adding a second one.
label (string, required) — text shown in the menu
display-conditional (function, optional) — called with the block context every time the menu opens; return true to include the command for that block
callback (function, required)
{"block-string": "Todos",
"block-uid": "YnatnbZzF",
heading: null,
"page-uid": "04-15-2021",
"read-only?": false,
"window-id": "BBG4fFwolaVlT5FZQdzAI7P40aB3-body-outline-04-15-2021"}
null
roamAlphaAPI.ui.blockContextMenu.addCommand(
{label: "Debug: Console Log",
"display-conditional": (e) => e["block-string"].includes("Test Block"),
callback: (e) => console.log(e)})
// resolves to null
roamAlphaAPI.ui.blockContextMenu.removeCommand
label.
label (string, required)
null
roamAlphaAPI.ui.blockContextMenu.removeCommand({label: "Debug: Console Log"})
// resolves to null
roamAlphaAPI.ui.pageContextMenu
roamAlphaAPI.ui.pageContextMenu.addCommand
label updates the existing command instead of adding a second one.
label (string, required) — text shown in the menu
display-conditional (function, optional) — called with the context object; return true to show the command
callback (function, required)
{"page-uid": "YnatnbZzF",
"page-title": "title",
"window-id": "BBG4fFwolaVlT5FZQdzAI7P40aB3-body-outline-04-15-2021"}
null
roamAlphaAPI.ui.pageContextMenu.addCommand(
{label: "Debug: Console Log", callback: (e) => console.log(e)})
// => null
roamAlphaAPI.ui.pageContextMenu.removeCommand
label.
label (string, required)
null
roamAlphaAPI.ui.pageContextMenu.removeCommand({label: "Debug: Console Log"})
// => null
roamAlphaAPI.ui.pageRefContextMenu
roamAlphaAPI.ui.pageRefContextMenu.addCommand
label updates the existing command instead of adding a second one.
label (string, required) — text shown in the menu
display-conditional (function, optional) — called with the context object; return true to show the command
callback (function, required)
{"ref-uid": "YnatnbZzF",
"block-uid": "xyz", // containing block
"window-id": "BBG4fFwolaVlT5FZQdzAI7P40aB3-body-outline-04-15-2021",
indexes: [0, 9], // outer indexes in the block string
type: "attribute"}
type values:
[[test]]
test::
#test
#[[Test]]
[t]([[Test]])
null
roamAlphaAPI.ui.pageRefContextMenu.addCommand(
{label: "Debug: Console Log", callback: (e) => console.log(e)})
// => null
roamAlphaAPI.ui.pageRefContextMenu.removeCommand
label.
label (string, required) — the label passed to roamAlphaAPI.ui.pageRefContextMenu.addCommand
null
roamAlphaAPI.ui.pageRefContextMenu.removeCommand({label: "Debug: Console Log"})
// => null
roamAlphaAPI.ui.blockRefContextMenu
roamAlphaAPI.ui.blockRefContextMenu.addCommand
label updates the existing command instead of adding a second one.
label (string, required) — text shown in the menu
display-conditional (function, optional) — called with the context object; return true to show the command
callback (function, required)
{"ref-uid": "YnatnbZzF",
"block-uid": "abc123xyz", // containing block
"window-id": "BBG4fFwolaVlT5FZQdzAI7P40aB3-body-outline-04-15-2021",
indexes: [0, 9]} // outer indexes in the block string
null
roamAlphaAPI.ui.blockRefContextMenu.addCommand(
{label: "Debug: Console Log", callback: (e) => console.log(e)})
// => null
roamAlphaAPI.ui.blockRefContextMenu.removeCommand
label.
label (string, required)
null
roamAlphaAPI.ui.blockRefContextMenu.removeCommand({label: "Debug: Console Log"})
// => null
roamAlphaAPI.ui.pageLinkContextMenu
roamAlphaAPI.ui.pageLinkContextMenu.addCommand
label updates the existing command instead of adding a second one.
label (string, required) — text shown in the menu
display-conditional (function, optional) — called with the context object; return true to show the command
callback (function, required)
{"page-uid": "YnatnbZzF",
"page-title": "title"}
null
roamAlphaAPI.ui.pageLinkContextMenu.addCommand(
{label: "Debug: Console Log", callback: (e) => console.log(e)})
// => null
roamAlphaAPI.ui.pageLinkContextMenu.removeCommand
label.
label (string, required)
null
roamAlphaAPI.ui.pageLinkContextMenu.removeCommand({label: "Debug: Console Log"})
// => null
roamAlphaAPI.ui.msContextMenu
roamAlphaAPI.ui.msContextMenu.addCommand
label updates the existing command instead of adding a second one.
label (string, required) — text shown in the menu
display-conditional (function, optional) — return true to show the command
callback (function, required) — called when the user selects the command
null
window.roamAlphaAPI.ui.msContextMenu.addCommand(
{label: "test", callback: () => { console.log("hey") }})
// => null
roamAlphaAPI.ui.msContextMenu.removeCommand
label.
label (string, required)
null
window.roamAlphaAPI.ui.msContextMenu.removeCommand({label: "test"})
// => null
roamAlphaAPI.ui.multiselect.getSelected
{"block-uid", "window-id"} objects; empty array if nothing is selected
window.roamAlphaAPI.ui.multiselect.getSelected()
// => [{"block-uid": "Vfht187T1", "window-id": "main-window"},
// {"block-uid": "abc123xyz", "window-id": "main-window"}]
roamAlphaAPI.ui.individualMultiselect.getSelectedUids
cmd-m). Synchronous.
window.roamAlphaAPI.ui.individualMultiselect.getSelectedUids()
// => ["Vfht187T1", "abc123xyz"]
roamAlphaAPI.ui.graphView
roamAlphaAPI.ui.graphView.addCallback
roamAlphaAPI.ui.graphView.wholeGraph.
label (string, required) — used to upsert or remove the callback
callback (function, required)
context when the user selects the command in the Command Palette
cytoscape — the Cytoscape graph object
elements — array of the nodes and edges in the graph
type — "page" | "all-pages" (only "page" occurs now)
{cytoscape: Core {_private: {…}},
elements: [
{id: "eTCpkG-HI", name: "B", weight: 7},
{id: "05-04-2021", name: "May 4th, 2021", weight: 10},
{id: "eTCpkG-HI-FrW4nHLat", source: "eTCpkG-HI", target: "FrW4nHLat"}
],
type: "page"}
type (string, deprecated) — only "page" views fire anymore, so this filter is pointless; omit it
null, but the return value is internal — treat it as void
roamAlphaAPI.ui.graphView.addCallback({
label: "my-extension: graph loaded",
type: "page",
callback: ({cytoscape, elements, type}) => console.log(type, elements)})
// (return value is not meaningful)
roamAlphaAPI.ui.graphView.removeCallback
label.
label (string, required)
null (synchronous)
roamAlphaAPI.ui.graphView.removeCallback({label: "my-extension: graph loaded"})
// => null
roamAlphaAPI.ui.graphView.wholeGraph
roamAlphaAPI.ui.graphView.wholeGraph.setMode
mode (string, required) — "Whole Graph" | "Explore"
roamAlphaAPI.ui.graphView.wholeGraph.setMode("Explore")
// (return value is not meaningful)
roamAlphaAPI.ui.graphView.wholeGraph.setExplorePages
pages (array of page titles, required) — throws if any title doesn't exist in the graph
roamAlphaAPI.ui.graphView.wholeGraph.setExplorePages(["My Project"])
// (return value is not meaningful)
roamAlphaAPI.ui.graphView.wholeGraph.getExplorePages
roamAlphaAPI.ui.graphView.wholeGraph.getExplorePages()
// => ["My Project"]
roamAlphaAPI.ui.graphView.wholeGraph.addCallback
label (string, required) — used to upsert or remove the callback
callback (function, required) — called with {"sigma-renderer": <Sigma renderer>} when the overview mounts
null
roamAlphaAPI.ui.graphView.wholeGraph.addCallback({
label: "test",
callback: ({"sigma-renderer": renderer}) => console.log(renderer)})
// => null
roamAlphaAPI.ui.graphView.wholeGraph.removeCallback
label.
label (string, required)
null
roamAlphaAPI.ui.graphView.wholeGraph.removeCallback({label: "test"})
// => null
roamAlphaAPI.ui.components
roamAlphaAPI.ui.components.unmountNode; for declarative React/JSX components, see roamAlphaAPI.ui.react.
roamAlphaAPI.ui.components.renderBlock
uid (string, required) — block to display
el (DOM node, required) — where to mount the component
open? (boolean, optional) — true forces the block open (children shown), false forces it closed; omitted = whatever the block's open state is in the graph
zoom-path? (boolean, optional) — show the zoom path above the block (similar to how linked references look)
zoom-start-after-uid (string, optional; only valid with zoom-path?)
... for everything before this uid
null
const newNode = document.createElement("div");
const wrap = document.getElementById("right-sidebar");
wrap.insertBefore(newNode, wrap.firstChild);
window.roamAlphaAPI.ui.components.renderBlock(
{uid: "6-P4ZEbIY",
el: newNode,
"open?": false,
"zoom-path?": true,
"zoom-start-after-uid": "ImSvJvm1_"})
// resolves to null once mounted
roamAlphaAPI.ui.components.renderPage
roamAlphaAPI.ui.components.renderBlock unless you need zoom-path? (block-only) or hide-mentions? (page-only).
uid (string, required) — page to display
el (DOM node, required)
hide-mentions? (boolean, optional) — hide the linked references at the bottom of the page
null
const newNode = document.createElement("div");
document.body.appendChild(newNode);
window.roamAlphaAPI.ui.components.renderPage(
{uid: "mK9pQ2rTw",
el: newNode,
"hide-mentions?": true})
// resolves to null once mounted
roamAlphaAPI.ui.components.renderPageTitle
h1.rm-title-display inside a div.rm-api-render--page-title; restyle it under that wrapper if a page-sized heading doesn't fit your layout.
title is resolved to the page's uid once at mount, so the mounted title follows the page through renames. A page that doesn't exist renders a "could not be found" line instead.
roamAlphaAPI.ui.components.unmountNode
uid (string): page to display; pass this or title
title (string): page to display, by title
el (DOM node, required)
null
const newNode = document.createElement("div");
document.body.appendChild(newNode);
window.roamAlphaAPI.ui.components.renderPageTitle(
{uid: "mK9pQ2rTw",
el: newNode})
// resolves to null once mounted
roamAlphaAPI.ui.components.renderSearch
cmd-u search) into a DOM node. Also available as the {{[[search]]: query}} component. CSS classes: rm-search-query, plus the existing rm-query.
search-query-str (string, required) — the search query
el (DOM node, required)
closed? (boolean, optional, default false) — collapse the view
group-by-page? (boolean, optional, default false) — group results by page
hide-paths? (boolean, optional, default false) — hide block paths in results
config-changed-callback (function, optional) — called with the new config when the user changes the view's configuration
null
const newNode = document.createElement("div");
const wrap = document.getElementById("right-sidebar");
wrap.insertBefore(newNode, wrap.firstChild);
window.roamAlphaAPI.ui.components.renderSearch(
{"search-query-str": "Bret Victor",
el: newNode,
"group-by-page?": false,
"config-changed-callback": (config) => console.log("new config", config)})
// resolves to null once mounted
roamAlphaAPI.ui.components.renderString
[[Page Title]] links for pages that don't exist — those links won't work.
string (string, required) — the string to render
el (DOM node, required)
null
window.roamAlphaAPI.ui.components.renderString(
{el: newNode,
string: "Hello via [[Roam Alpha API]]'s `renderString` — supports ((abc123xyz)) refs too"})
// resolves to null once mounted
roamAlphaAPI.ui.components.unmountNode
el (DOM node, required) — the node the component was mounted in
null
window.roamAlphaAPI.ui.components.unmountNode({el: newNode})
// resolves to null
roamAlphaAPI.ui.react
roamAlphaAPI.ui.components. Note the props are camelCase, unlike its kebab-case keys.
roamAlphaAPI.ui.react.Block
uid (string, required) — block to display
open (boolean, optional) — force open/closed; omitted = the block's open state in the graph
zoomPath (boolean, optional) — show the zoom path
zoomStartAfterUid (string, optional; only valid with zoomPath) — compact the path to ... before this uid
const { Block } = window.roamAlphaAPI.ui.react;
<Block uid="6-P4ZEbIY" />
<Block uid="6-P4ZEbIY" open={false} />
<Block uid="6-P4ZEbIY" zoomPath={true} zoomStartAfterUid="ImSvJvm1_" />
roamAlphaAPI.ui.react.Page
uid (string) / title (string) — one of the two is required
hideMentions (boolean, optional) — hide the linked references section at the bottom
const { Page } = window.roamAlphaAPI.ui.react;
<Page uid="page-uid-123" />
<Page title="My Page" hideMentions={true} />
roamAlphaAPI.ui.react.Search
searchQueryStr (string, required) — the search query
closed (boolean, optional) — collapse the view
groupByPage (boolean, optional) — group results by their page
hidePaths (boolean, optional) — hide block paths in results
onConfigChange (function, optional) — called with the new config object when the user changes grouping etc.
const { Search } = window.roamAlphaAPI.ui.react;
<Search searchQueryStr="Bret Victor" groupByPage={true}
onConfigChange={(config) => console.log(config)} />
roamAlphaAPI.ui.react.BlockString
[[page links]], ((block refs)), formatting. The rendered content is not editable.
string (string, required) — the Roam-markdown string to render
const { BlockString } = window.roamAlphaAPI.ui.react;
<BlockString string="Hello [[World]]" />
<BlockString string="This is **bold** and __italic__" />
roamAlphaAPI.ui.callout
roamAlphaAPI.ui.callout.addType
[!type] syntax.
.rm-callout--{type} for the color and .rm-callout--{type} .rm-callout__icon for the icon. A built-in default icon shows until your CSS loads.
type (string, required) — the string used in the [!type] callout syntax
null
window.roamAlphaAPI.ui.callout.addType({type: "recipe"})
// => null
roam/css or an extension stylesheet:
.rm-callout--recipe {
--callout-color: #f778ba;
}
.rm-callout--recipe .rm-callout__icon::before {
content: "🍪";
font-family: initial;
}
roamAlphaAPI.ui.callout.removeType
type (string, required) — the type string to remove
null
window.roamAlphaAPI.ui.callout.removeType({type: "recipe"})
// => null
roamAlphaAPI.util
roamAlphaAPI.util.generateUID
window.roamAlphaAPI.util.generateUID()
// => "aB3xK9mP2"
roamAlphaAPI.util.pageTitleToDate
title (string, required) — a daily note title like "June 16th, 2022"
null for anything that isn't a daily note title
roamAlphaAPI.util.pageTitleToDate("June 16th, 2022")
// => Date Thu Jun 16 2022 00:00:00
roamAlphaAPI.util.pageTitleToDate("not a daily note title")
// => null
roamAlphaAPI.util.dateToPageTitle
date (Date, required) — a JavaScript Date
roamAlphaAPI.util.dateToPageTitle(new Date(2022, 5, 16))
// => "June 16th, 2022"
roamAlphaAPI.util.dateToPageUid
roamAlphaAPI.util.generateUID when programmatically creating a daily note page and you need its uid ahead of time.
date (Date, required) — a JavaScript Date
roamAlphaAPI.util.dateToPageUid(new Date(2022, 5, 16))
// => "06-16-2022"
roamAlphaAPI.file
roamAlphaAPI.file.upload
roamAlphaAPI.util.uploadFile — prefer this version; the old one won't be removed.
file (File, required) — a File object
toast (object, optional)
hide (boolean, optional, default false) — hide the upload toast
 for images, {{[[pdf]]: url}} / {{[[audio]]: url}} / {{[[video]]: url}} for those media types — or the bare download url (string) for other file types
await roamAlphaAPI.file.upload({file: myImageFile, toast: {hide: true}})
// => ""
await roamAlphaAPI.file.upload({file: new File([""], "notes.txt")})
// => "https://firebasestorage.googleapis.com/..." (bare url — not a recognized media type)
roamAlphaAPI.file.get
fetch the url yourself, but get handles decryption on encrypted graphs and restores the original file name and type metadata.
url (string, required) — a firebase storage url, obtained from roamAlphaAPI.file.upload or from a block
format (string, optional) — pass "base64" to resolve with {base64, filename, mimetype} instead of a File object
format: "base64", to {base64, filename, mimetype}
await roamAlphaAPI.file.get({url: "https://firebasestorage.googleapis.com/v0/b/firescript-577a2.appspot.com/o/..."})
// => File {name: "GVfB6XBcMR.pdf", type: "application/pdf", size: 183424, ...}
roamAlphaAPI.file.delete
url (string, required) — a firebase storage url, obtained from roamAlphaAPI.file.upload or from a block
undefined
await roamAlphaAPI.file.delete({url: "https://firebasestorage.googleapis.com/v0/b/firescript-577a2.appspot.com/o/..."})
// => undefined
roamAlphaAPI.user
roamAlphaAPI.user.uid
roamAlphaAPI.data.pull to get the user's display page and other metadata.
null when not signed in
roamAlphaAPI.user.uid()
// => "BBG4fFwolaVlT5FZQdzAI7P40aB3" (or null when signed out)
// pull all info about the current user
roamAlphaAPI.data.pull("[*]", [":user/uid", window.roamAlphaAPI.user.uid()]);
// => {":user/uid": "BBG4fFwolaVlT5FZQdzAI7P40aB3", ":user/display-name": "Josh", ...}
roamAlphaAPI.user.isAdmin
roamAlphaAPI.graph
roamAlphaAPI.graph.name (string) — the name of the current graph
roamAlphaAPI.graph.type (string) — "hosted" | "offline"
roamAlphaAPI.graph.isEncrypted (boolean) — whether the graph is encrypted
roamAlphaAPI.platform
roamAlphaAPI.platform.isDesktop (boolean) — true in the Roam Desktop App
roamAlphaAPI.platform.isMobileApp (boolean) — true in the Roam Mobile App
roamAlphaAPI.platform.isMobile (boolean) — true on small screens; purely a screen-size check (media query max-width: 450px)
roamAlphaAPI.platform.isIOS (boolean) — true on iPhone, iPad, or iPod
roamAlphaAPI.platform.isPC (boolean) — true on a PC; useful for offering different shortcuts on PC vs Mac
roamAlphaAPI.platform.isTouchDevice (boolean) — true on touch devices
roamAlphaAPI.depot
roamAlphaAPI.depot.getInstalledExtensions
{ext-id: entry}, one entry per installed marketplace extension and registered developer build
id (string): the extension id, which the other roamAlphaAPI.depot methods take
name (string)
type (string): "marketplace" or "developer"
enabled (boolean): whether the extension is switched on; for a developer build, false only after roamAlphaAPI.depot.developer.disable
adminEnabled (boolean): installed for everyone on the graph by an admin
running (boolean): currently loaded in this tab
version (string): "DEV" for developer builds
roamAlphaAPI.depot.getInstalledExtensions()
// =>
{"ccc+ccc-roam-pdf-2":
{id: "ccc+ccc-roam-pdf-2",
name: "Roam PDF Highlighter 2",
type: "marketplace",
enabled: false,
adminEnabled: true,
running: false,
version: "1"},
...}
roamAlphaAPI.depot.reloadDeveloperExtensions
ctrl-d ctrl-r).
roamAlphaAPI.depot.developer.disable; use roamAlphaAPI.depot.developer.reload for a single build.
await roamAlphaAPI.depot.reloadDeveloperExtensions()
// => {reloaded: [{id: "dev-extension-id", name: "My Dev Extension"}]}
roamAlphaAPI.depot.openSettings
id (string, required): the extension id, as listed by roamAlphaAPI.depot.getInstalledExtensions
undefined
await roamAlphaAPI.depot.openSettings({id: "8bitgentleman+clear-sidebar"})
// => undefined
roamAlphaAPI.depot.extension
{id} and resolves to that extension's entry from roamAlphaAPI.depot.getInstalledExtensions.
adminEnabled) can only be changed by an admin.
install is refused with the error code ACTION_NOT_AVAILABLE whatever the token's scope; installing new code is a user action. The other methods work there.
roamAlphaAPI.depot.extension.install
running is usually still false in the returned entry.
id (string, required): the Roam Depot id, in the form "author+repo"
await roamAlphaAPI.depot.extension.install({id: "8bitgentleman+clear-sidebar"})
// =>
{id: "8bitgentleman+clear-sidebar",
name: "Clear Right Sidebar",
type: "marketplace",
enabled: true,
adminEnabled: false,
running: false,
version: "6"}
roamAlphaAPI.depot.extension.uninstall
id (string, required): the Roam Depot id
{id, installed: false}
await roamAlphaAPI.depot.extension.uninstall({id: "8bitgentleman+clear-sidebar"})
// => {id: "8bitgentleman+clear-sidebar", installed: false}
roamAlphaAPI.depot.extension.enable
id (string, required): the Roam Depot id
await roamAlphaAPI.depot.extension.enable({id: "8bitgentleman+clear-sidebar"})
// => {id: "8bitgentleman+clear-sidebar", name: "Clear Right Sidebar", type: "marketplace", enabled: true, adminEnabled: false, running: true, version: "6"}
roamAlphaAPI.depot.extension.disable
id (string, required): the Roam Depot id
await roamAlphaAPI.depot.extension.disable({id: "8bitgentleman+clear-sidebar"})
// => {id: "8bitgentleman+clear-sidebar", name: "Clear Right Sidebar", type: "marketplace", enabled: false, adminEnabled: false, running: false, version: "6"}
roamAlphaAPI.depot.developer
install takes {id}, the id listed by roamAlphaAPI.depot.getInstalledExtensions: the base URL or PR shorthand of a remote build, or a generated string starting with "uuid" for a folder build.
running: false; grant it from the toast's Load button, or pick "Allow on every visit" in Chrome's prompt.
install is refused with the error code ACTION_NOT_AVAILABLE whatever the token's scope; registering new code is a user action. The other methods work there.
roamAlphaAPI.depot.developer.install
{url} registers a remote build: a base URL whose extension.js and README.md are publicly reachable, or a roam-depot PR shorthand such as "author+repo+142". Rejects when the files can't be fetched or the build is already registered.
{directoryHandle} registers a folder build from a FileSystemDirectoryHandle you already hold, for example from window.showDirectoryPicker().
url (string, optional): base URL or PR shorthand
directoryHandle (FileSystemDirectoryHandle, optional): a folder handle
id is what the other methods take (the normalized base URL, the PR shorthand, or the generated uuid string of a folder build)
await roamAlphaAPI.depot.developer.install({url: "https://example.com/my-extension/"})
// =>
{id: "https://example.com/my-extension/",
name: "https://example.com/my-extension/",
type: "developer",
enabled: true,
adminEnabled: false,
running: true,
version: "DEV"}
roamAlphaAPI.depot.developer.uninstall
id (string, required): the dev build id
{id, installed: false}
await roamAlphaAPI.depot.developer.uninstall({id: "https://example.com/my-extension/"})
// => {id: "https://example.com/my-extension/", installed: false}
roamAlphaAPI.depot.developer.enable
id (string, required): the dev build id
await roamAlphaAPI.depot.developer.enable({id: "https://example.com/my-extension/"})
// => {id: "https://example.com/my-extension/", name: "https://example.com/my-extension/", type: "developer", enabled: true, adminEnabled: false, running: true, version: "DEV"}
roamAlphaAPI.depot.developer.disable
roamAlphaAPI.depot.reloadDeveloperExtensions.
id (string, required): the dev build id
await roamAlphaAPI.depot.developer.disable({id: "https://example.com/my-extension/"})
// => {id: "https://example.com/my-extension/", name: "https://example.com/my-extension/", type: "developer", enabled: false, adminEnabled: false, running: false, version: "DEV"}
roamAlphaAPI.depot.developer.load
id (string, required): the dev build id
await roamAlphaAPI.depot.developer.load({id: "https://example.com/my-extension/"})
// => {id: "https://example.com/my-extension/", name: "https://example.com/my-extension/", type: "developer", enabled: true, adminEnabled: false, running: true, version: "DEV"}
roamAlphaAPI.depot.developer.unload
id (string, required): the dev build id
await roamAlphaAPI.depot.developer.unload({id: "https://example.com/my-extension/"})
// => {id: "https://example.com/my-extension/", name: "https://example.com/my-extension/", type: "developer", enabled: true, adminEnabled: false, running: false, version: "DEV"}
roamAlphaAPI.depot.developer.reload
roamAlphaAPI.depot.reloadDeveloperExtensions.
id (string, required): the dev build id
await roamAlphaAPI.depot.developer.reload({id: "https://example.com/my-extension/"})
// => {id: "https://example.com/my-extension/", name: "https://example.com/my-extension/", type: "developer", enabled: true, adminEnabled: false, running: true, version: "DEV"}
roamAlphaAPI.ai
roamAlphaAPI.ai.addTool #experimental
name updates the existing tool instead of adding a second one, so re-running a script is safe.
roamAlphaAPI.data.ai.getGraphGuidelines (as extensionTools) and invoked via roamAlphaAPI.data.ai.callExtensionTool.
name, graph-wide, and are never removed automatically — the registering script owns the lifecycle. Roam Depot extensions should use extensionAPI.ai.addTool #experimental instead: same arguments, but tools are namespaced by extension and removed automatically on unload.
inputSchema (if provided) before handler runs.
name (string, required) — the id agents call the tool by; up to 64 characters from A-Za-z0-9_-
description (string, required) — tells the agent what the tool does and when to use it; up to 2000 characters
handler (function, required)
context object (below); returns a JSON-serializable value or a Promise resolving to one
context.tokenUserUid (string) — uid of the AI user the call came from; absent when the tool is invoked directly from JS
user-uid argument (e.g. block: {..., "user-uid": context.tokenUserUid}) to attribute writes to the AI — including writes made after the handler's first await.
context.asTokenUser(fn) — runs fn with the graph writes it issues attributed to the calling AI, with the AI's token scopes in effect
scope (string, optional, default "edit") — "read" | "append" | "edit"
inputSchema (object, optional)
handler's args
$schema, if present, must be the draft-07 URI — schemas are always validated as draft-07.
type, if present, must be "object" — a tool's args are always a plain object.
handler runs; when absent, args reach the handler unvalidated.
null
window.roamAlphaAPI.ai.addTool({
name: "word-count",
description: "Counts words in a block's text.",
scope: "read",
inputSchema: {
type: "object",
properties: {uid: {type: "string", description: "The block's uid"}},
required: ["uid"]
},
handler: ({uid}) => {
const s = window.roamAlphaAPI.pull("[:block/string]", [":block/uid", uid])[":block/string"] || "";
return {words: s.trim() ? s.trim().split(/\s+/).length : 0};
}
}) // => null
roamAlphaAPI.ai.removeTool #experimental
roamAlphaAPI.ai.addTool #experimental. Removing a name that isn't registered does nothing.
name (string, required) — the registered tool's name
null
window.roamAlphaAPI.ai.removeTool({name: "word-count"}) // => null
roamAlphaAPI.constants
roamAlphaAPI.constants.corsAnywhereProxyUrl
url directly, fetch ${roamAlphaAPI.constants.corsAnywhereProxyUrl}/${url}.
https://roamresearch.com.
let urlToFetch = "https://google.com"
await fetch(`${roamAlphaAPI.constants.corsAnywhereProxyUrl}/${urlToFetch}`)
.then(a => a.text())
// => "<!doctype html><html ...>" (the fetched page's body as text)
event.dataTransfer.getData(type) in your own drop handlers.
myPanel.addEventListener("drop", (e) => {
const uids = e.dataTransfer.getData("roam/block-uid-list-only-parents").split("\n")
console.log("dropped blocks:", uids)
})
// dragging a page from the left sidebar carries its page uid instead
roamAlphaAPI.depot, shipping with the next web release
roamAlphaAPI.depot.openSettings, roamAlphaAPI.depot.extension (install, uninstall, enable, disable) and roamAlphaAPI.depot.developer (install, uninstall, enable, disable, load, unload, reload)
roamAlphaAPI.depot.getInstalledExtensions entries gain type and running
roamAlphaAPI.depot.reloadDeveloperExtensions skips builds disabled with roamAlphaAPI.depot.developer.disable
roamAlphaAPI.ui.components.renderPageTitle, the page's editable title without its body, shipping with the next web release
